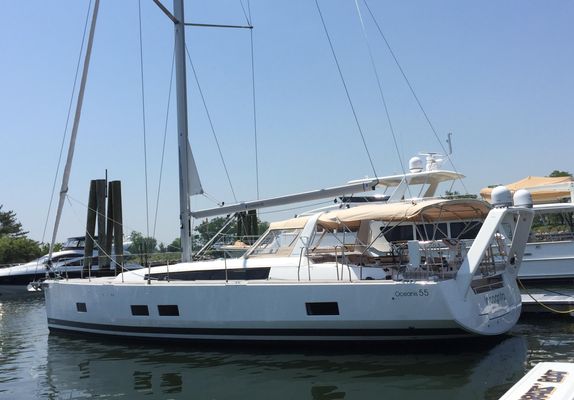

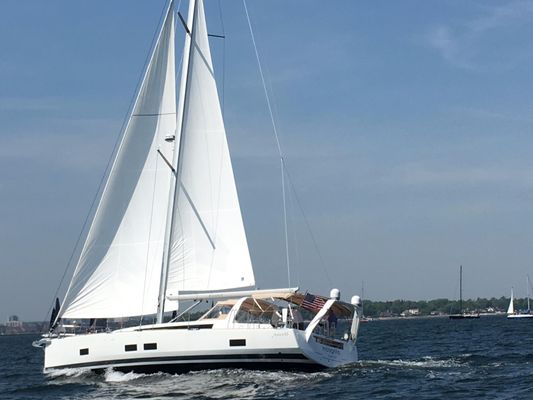

2015 Beneteau Oceanis 55

CONSTRUCTION ____________________________________

• Design made following European Directive requirements and according to CE certification

• Infusion hull (Polyester / Sandwich balsa wood)

• Structural single skin infusion inner molding (Fabric - resin) bonded to the hull

• Injection molded deck in glass fiber/balsa sandwich, covered with "diamondpoint" non-slip coating

• Infusion single-skin GRP injection inner deck molding

• Deck hull joint screwed, bonded and banded with 1 solid wood bulwark

• Cast iron keel fixed with bolts and stainless steel backing plates

• Hung rudder with stainless steel stock

• White hull - Grey metal hull decoration

• 8 Large hull ports

DECK EQUIPMENT __________________________________

RIGGING

• Standard mast 9/10 anodized aluminum installed on the deck, 2 sets of spreaders

• Anodized aluminum boom

• Discontinuous stainless steel standing rigging

• 2 Backstays with turnbuckles, Rigid boom vang

• Genoa furling system with drum on the deck

• 2 Stand Up blocks on mainsheet arch

• 2 Genoa tracks with piston adjusted traveller cars

• 2 genoa sheet turning blocks • Rigging run back to cockpit (except boom topping lift)

• Complete running rigging: Main halyard, Genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Genoa sheets

• 11 Line stoppers

• 2 Lockers for rope tails near helm stations

WINCHES

• 2 Self-tailing genoa sheet winches (H60.2 STC)

• 2 Self tailing coachroof winches (H46.2 STC)

• 2 Aluminum winch handles Speed Grip

• 2 Winch handle holders HALYARDS Completely hidden

• GRP halyard cover from mast foot to the back of the cockpit

SAILS

• Furling genoa with UV protective strip

• Mainsail (roller filing) with logo full batten, 4 Batten sleeves, with slides

MOORING - ANCHORING GEAR

• Self-bailing chain locker with clench eye

• 12 V - 1500 W vertical electric windlass - Remote control

• 8 Aluminum mooring cleats, Length: 400 mm / 1’4’’ - Stainless steel deck line protection SAIL LOCKER

• Access through deck hatch T70, Passage width: 62 cm / 2’

• Stainless steel ladder

• Cubby hole lockers

• Direct access to the anchor well, Panel: T44

SAFETY ON DECK

• 1 Open stainless steel forward pulpit

• 2 Stainless steel aft pushpits

• 1 Ring lifebuoy bracket

• 1 Outboard engine bracket

• Flag mounts welded on aft push-pit

• Double lifelines and stainless steel stanchions, 750 mm / 2’6’’ - Openings in guardrail to port and starboard COCKPIT • Self-bailing cockpit

• 2 Cockpit locker

• 2 Lockers in cockpit floor under helm's feet

• 1 Life-raft locker under helm seat (0,95 m x 0,42 m x 0,59 m (Deep) / 3’1’’ x 1’5’’ x 1’11’’ (Deep))

• 1 Gas locker for bottle(s) in cockpit sole

• Natural solid wood slatted cockpit benches

• 2 Steering wheel consoles: Stainless steel steering wheels - 900 mm diameter - Leather covered - Steering gear at the helm station - Metal cable transmission system - Glass holder in stainless steel

• 2 Deck access points to tiller system + Power supply access hatch • 1 Emergency tiller

• 2 Steering compass

• Engine throttle and control panel to starboard

• Polyester cockpit table - 2 Trim tab - 2 side tables at the end of the table - Glove boxes - 1 Cooler - 1 Storage - 2 Large stainless steel handrails - 12 V Power outlet - Lamp with shade

• Cockpit shower hot/cold water

• 1 Fixed composite arch - Built-in lighting LED - 4 Handrails

• 1 shore supply socket to starboard • 2 Sunbathing areas to either side of the companionway

• 2 Hinged PMMA companionway doors - Sliding hatch made of PMMA SWIM DECK / STERN DECK

• Fully opening transom, convertible into swim platform (2,85 m x 0,77 m / 9’4’’ x 2’6’’) • Electrically controlled opening swim platform

• Natural solid wood decking on swim platform

• 1 Stainless steel swimming ladder, Folding - Solid wood steps

INTERIOR __________________________________________

Bathrooms 3 cabins 2 version - standard

• Woodwork Alpi Mahogany

• Parquet type laminated floors

• Padding upholstery in salon and cabins

• Interior upholstery, in fabrics

• Marine mattresses in the cabins

COMPANIONWAY

• Headroom: 1,97 m / 6’6’’

• Wooden salon companionway with molded wood hanging steps with nonslip surface

• 2 Leather covered stainless steel handrails

ENGINE ____________________________________________

• Engine Yanmar Diesel: - 80 HP/80 HP, Sail Drive, Common Rail

• Engine control - Control panel in cockpit starboard

• Engine compartment: Soundproofing foam - Ventilation: 2 air intakes and 1 air outlet

• 1 Alternator 12 V / 125 Amp

• 2 Rotomolded diesel tank 200 L / 53 US Gal (under port aft berth and Starboard) - Electronic gauge - Low level alarm - 2 Deck fillers

• Filters: Sea water - Diesel - Water separator

• PYI Feathering Prop

• 1 Engine access through companionway (opening with 2 gas pistons) - 2 Engine access through aft cabins

ELECTRICITY _______________________________________

• 12 V Circuit • 4 Service batteries (140 Amp) - 1 Engine battery (110 Amp)

• 1 Load balancer

• 1 60 Ah Battery charger

• 12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)

• 7 115 V Power outlets

• 2 12 V Power outlets • Lighting: Overhead lights - Reading lights - Reading light, flexible and multidirectional

• Navigation lights: 1 Forward and aft navigation lights - 1 Engine navigation light / Deck light forward of mast - 1 Mooring light on masthead

• Wire runs for options cables

PLUMBING _________________________________________

• 1 Rotomolded freshwater tank (324 L / 86 US Gal, Starboard salon) - 1 Rotomolded freshwater tank (330 L / 87 US Gal, Forward cabin) - 2 Deck fillers - Separate tank filling - Tank selection with "¼ turn" by-pass valves

• Water pressure system - Expansion tank - Inline filter

• 40 L / 11 US Gal Electric calorifier (engine run)

• 1 Rigid 80 L / 21 US Gal black water holding tank for each WC

• Delayed shower draining and electric shower drain pumps

• 1 Electric bilge pump - 1 Manual bilge pump

• 1 Electric ice box drain pump

GAS _______________________________________________

• 1 Gas bottle box in the cockpit (diameter 0,34 m x 0,53 m / 1’1’’ x 1’9’’)

• Regulator and solenoid

UPHOLSTERY

Cushions Ultra Promessa Salon

TRIM LEVEL ELEGANCE

Inner Forestay Chainplate

Electric Man Winch Port

Stainless Steel Bowsprit

Fender Support in Cockpit Locker

Cockpit Table + White Cover

Stainless Steel Aft Grabrail

Deck Wash Pump

Dock Water Inlet

Fresh + Sea Water Foot Pump

Indoor LED Light

Nav LED Light

3 Burner Stove/Oven

Icebox

Stove Hood

Storage Space Under Floor

Extra Battery Charger 40A

Inverter 12 110V

Sonic Hub + In Out Loudspeakers

Nav Dis BG 12P EVO2 Outdoor Port

Nav Dis BG 12P EVO2 Outdoor Starboard

Simrad Module- WIFI connection

Trifunction BG

Cockpit Wood Slated Floor

B&G Windvane and Anemometer

EASY DOCKING PACK

Windlass Control in Cockpit with Chain Counter

Custom Steering Wheel Covers

Mooring Lines, Ground Tackle, Fenders

Bow Thruster Maxpower SP125

ELECTRONIC PACK 2015

Helm Consoles to Port and Starboard

2nd GRP Support for Navigation Instruments

Multifunction Touchscreen Zeus 12" (GPS-Chartplotter- Chart Reader-Cartography Navionice Silver Included)

RUNNING RIGGING

Flag Halyard/Spreader

Asymmetric Spinnaker Rigging

Self-Tacking Jib Hardware

MAST-BOOM

Anodized Furling Mast

DECK FITTINGS

Genoa Winch H60_2STCE H60_STCC

EQUIPMENT HULL/DECK

Davits Support Instruments

Silver Coachroof Sprayhood

Silver Cockpit Awning

Remote Control Electric Transom

Custom Cockpit Cushions

STEERING SYSTEM

White Composite Steering Wheel

INTERIOR WATER SYSTEM

Extra Water Tank

ELECTRICAL EQUIPMENT

Generator 9KVA 220V/60HZ

GALLEY APPLIANCES

110V Microwave

110V 5 Person Dishwasher

HEATING/COOLING

Air Condition Connect Stem Cab

230V 60 HZ Air Conditioning

INTERIOR EQUIPMENT

Safe

Grey Upholstery Padding Aft Ca

Slatted Base Bed in Aft Cabin

Folding and Pivot Salon Table

TOILET

Elect Toilet Vacu Flush +WC

Res Rig WC Vacu FL Spe US Artd

PROPULSION SOUNDPROOFING

4 Blade Feathering  Propeller

HULL

White Hull + Metal Grey Livery

ENTERTAINMENT SYSTEMS

Bose Acoustimass 3 Speakers

TV Combo DVD Prefit

TV Combo DVD Prefit Salon

Radar B&G 4 G

Chartplotter B&G 16P NSO Indoor

Windex Windvane

Cartography B&G US

Autopilot B&G  AC 42

AIS 400 B&G

VHF B&G  V 50

VENTILATION FROM COACHROOF

Mosquito Screesn

EXTERIOR WOOD

Solid Wood Slatted Decks

KVH Tracvision TV3

KVH TV3 Empty Dome

KVH Direct TV H25 HD Receiver with IR Remote Control

DirecTV Remote Antenna for HD 25

Samsung 24" TV

Samsung 32" TV

Bose TV Sound System with sound bar

JL Audio M-Series Cockpit Speakers

Pepwave Max 4G/WIFI Router

2 B&G Triton Pilot Controller
